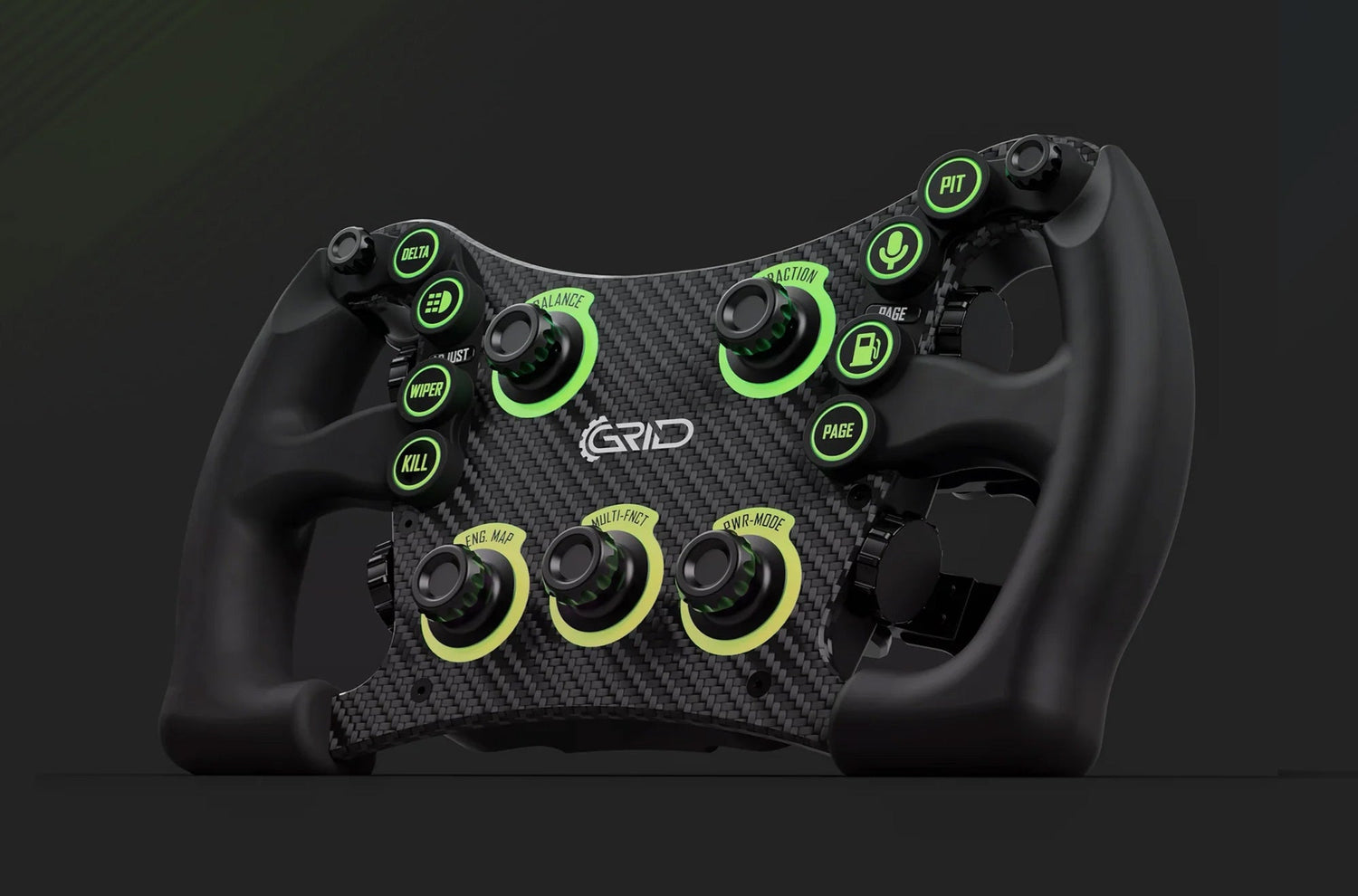

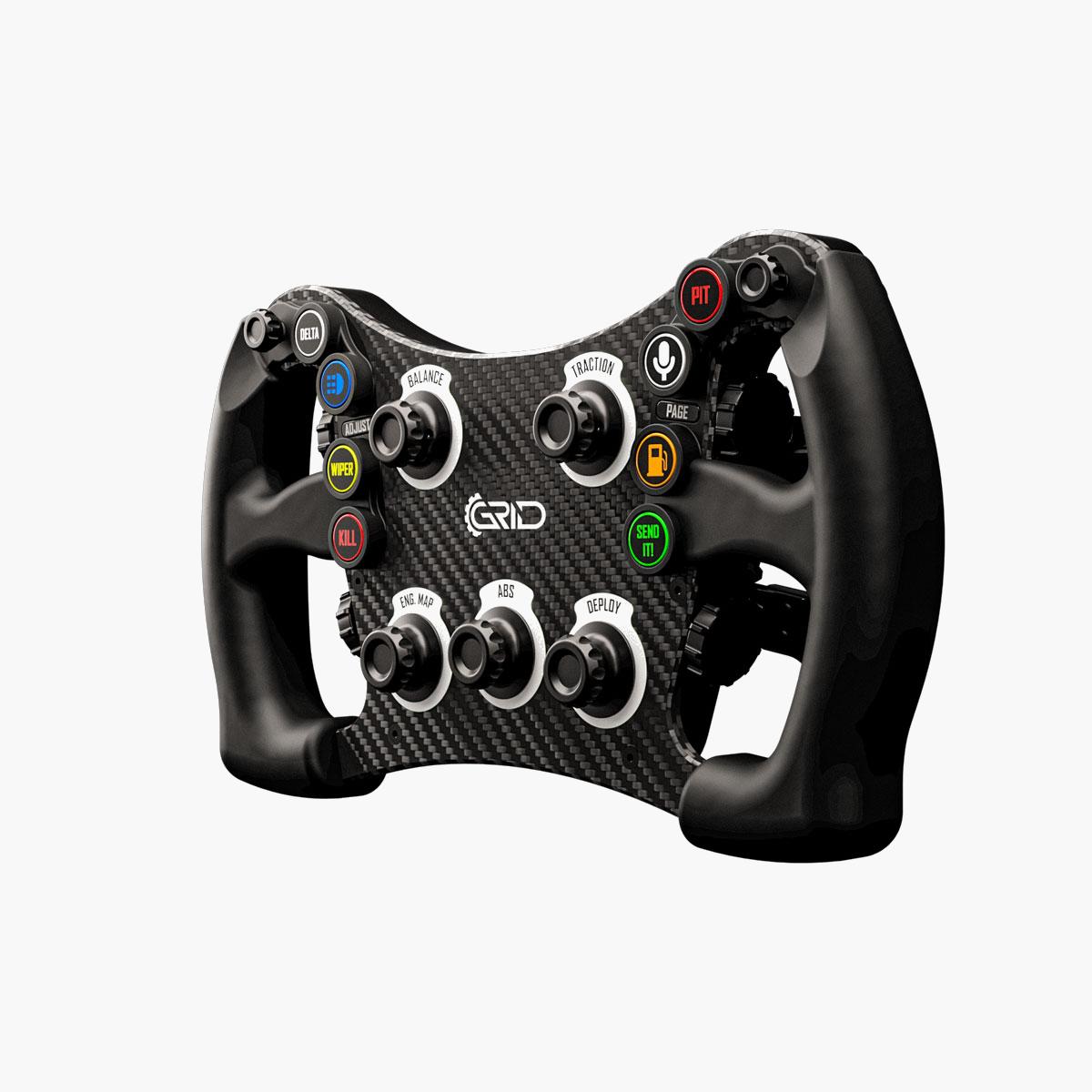

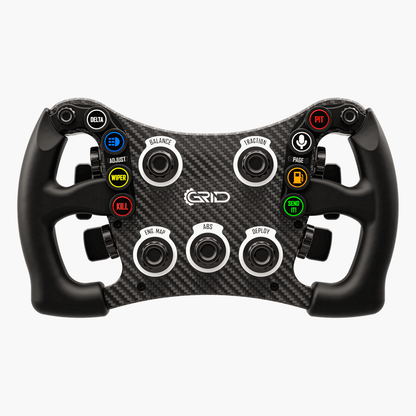

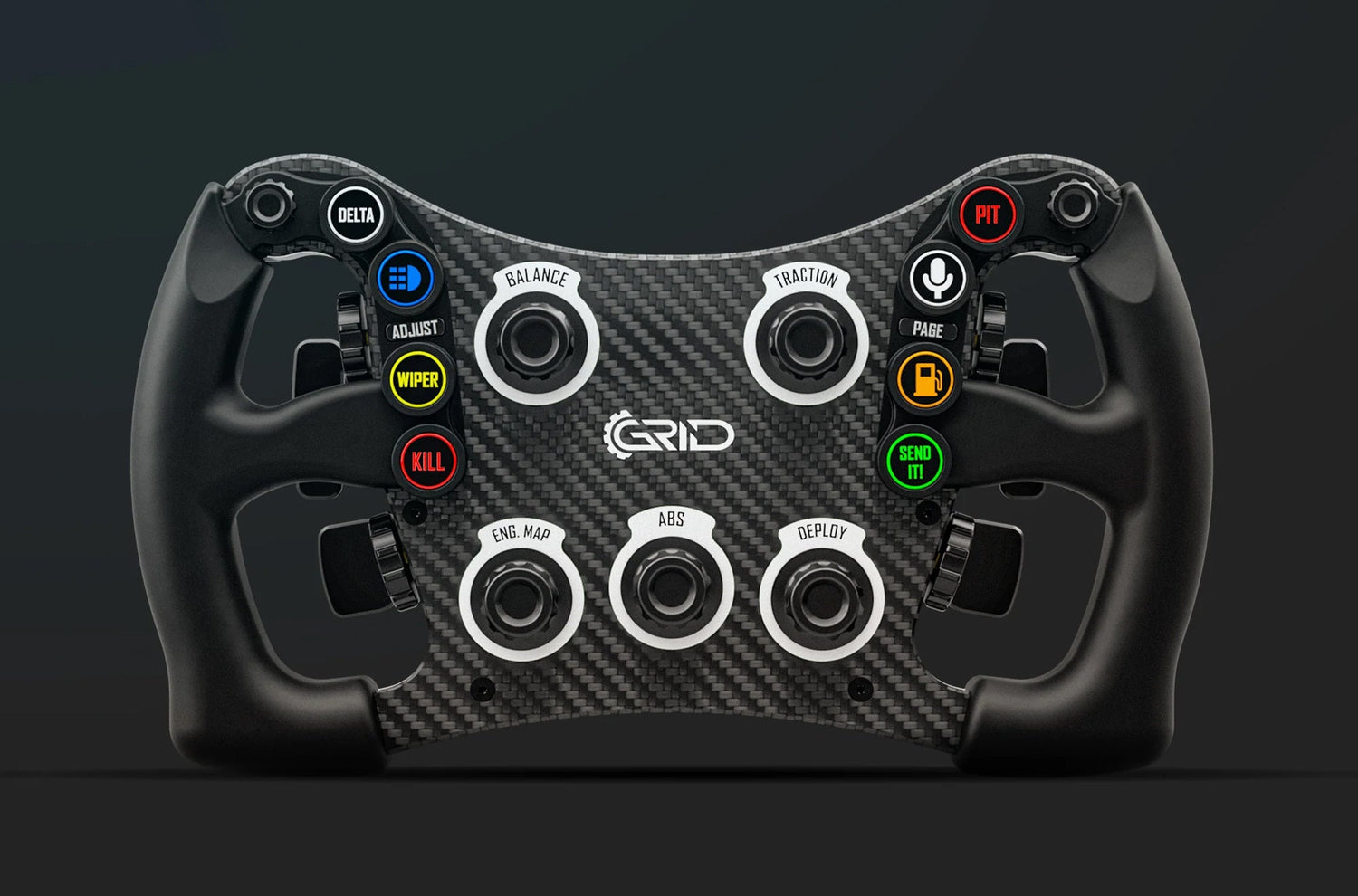

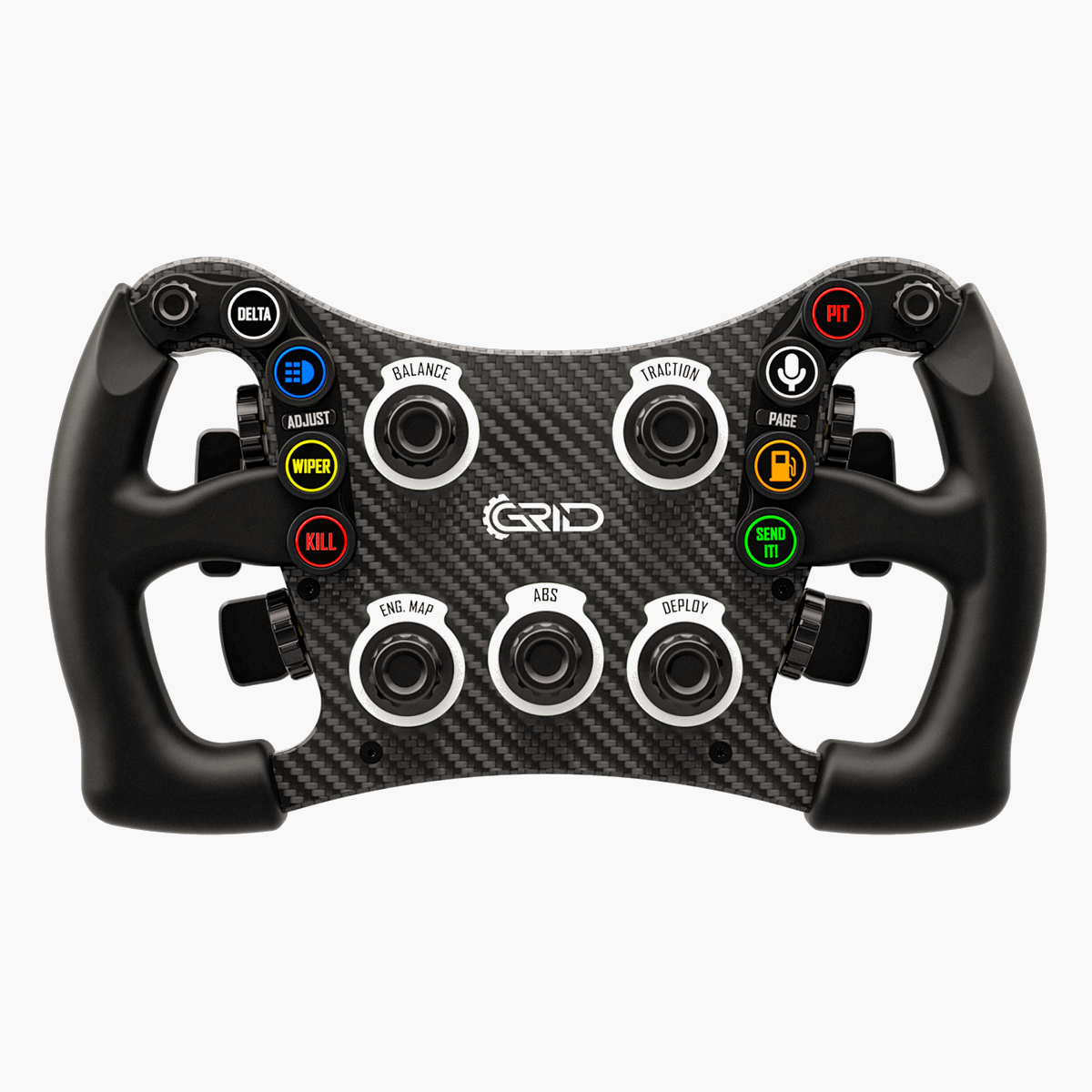

GRID MPX V2

GRID MPX V2

Sim Racing Steering Wheel

Utilizing GRID signature electronics and construction methods, along with the best components available, we are bringing our signature quality and feel to a new price point. At 295mm, the wheel comes fully loaded with features as a standard, no upgrade option needed package.

  • Attention to detail
  • Immersive visual feedback
  • Full aluminum construction
  • Fully customizable with Race Director®
$1,199.00
$1,199.00
Sale Sold out

3 Years Warranty

Backed by a 3-year warranty. Built to perform, made to last.

Instruction Manual

GRID MPX V2: Download

View full details

Attention to detail

By working alongside manufacturers and suppliers, we are able to custom order encoders, buttons, and other parts to our own industry-leading specifications. In-house testing and selection are done by testing a wide range of samples with various press and rotational forces. With the incredible amount of precision and effort we put into every detail of our wheels, you will benefit and thoroughly enjoy it every second it is used.

Make it yours

Need to quickly toggle a black box? Brake bias? These rear-angle mounted Otto P9s are found in real-life racecars and are known to be one of the best buttons on the market. Plus, with 87 individually colorable LEDs, GRID MPX has a theme for everyone.

Full aluminum construction

The MPX is built with the highest quality control, construction, and FEA testing to shave weight while maintaining superior rigidity and is tested to meet the highest standards. The enclosure, shifters, clutches, paddles, hub adapter and other parts are all machined from high-quality 6061 aluminum. Our anodizing surface treatment has been selected through rigorous in-house testing for durability, longevity, and ease of cleaning.

GRID MPX V2 Details

✔ Grips: Custom overmolded PU grips with an anti-static mixture

✔ Construction: Aluminum CNC throughout

✔ Frontplate: 5mm carbon fiber

✔ 7-Way Switches: 2x 7-Way switches - 1 in each top corner

✔ Switches: 8 x 650gf APEM switches (4 RGB LEDs per)

✔ Encoders: 9x ELMA custom spec encoders with push (11 RGB LEDs per on front)

✔ LEDs: 87 Telemetry controllable RGB LEDs

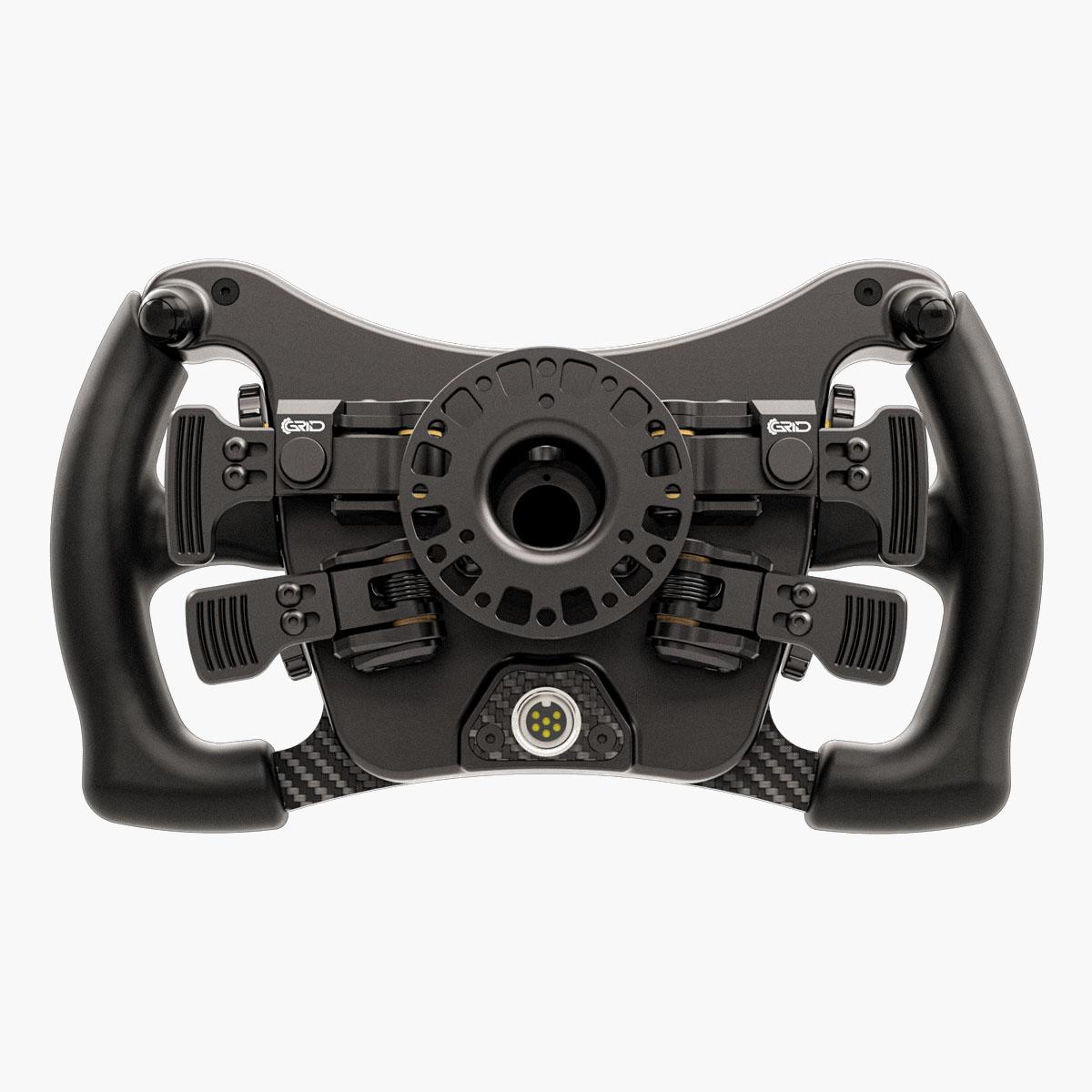

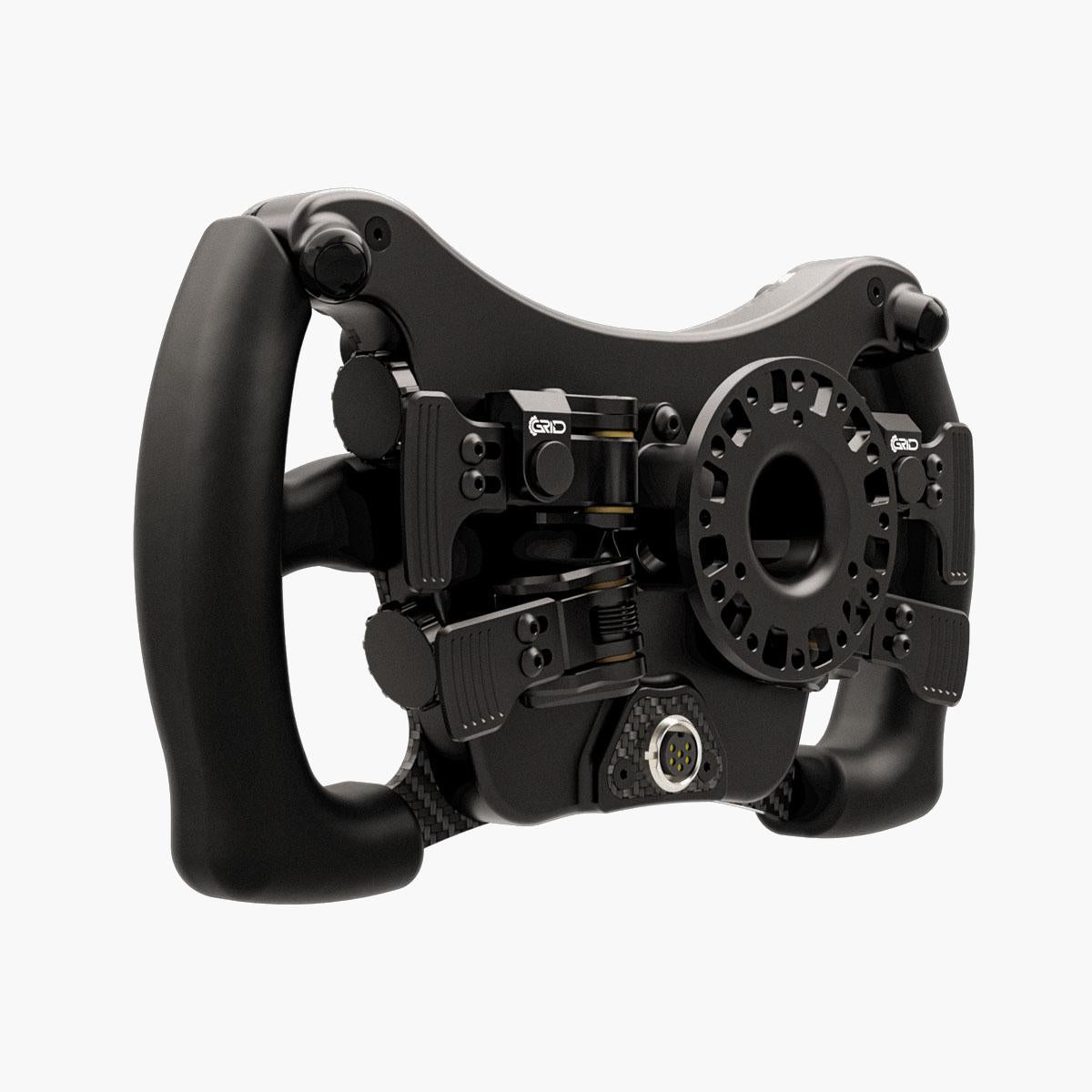

✔ Shifters: Our signature height and paddle mounting width adjustable single magnet paddle shifters

✔ Clutches: Height and paddle mounting width adjustable clutches

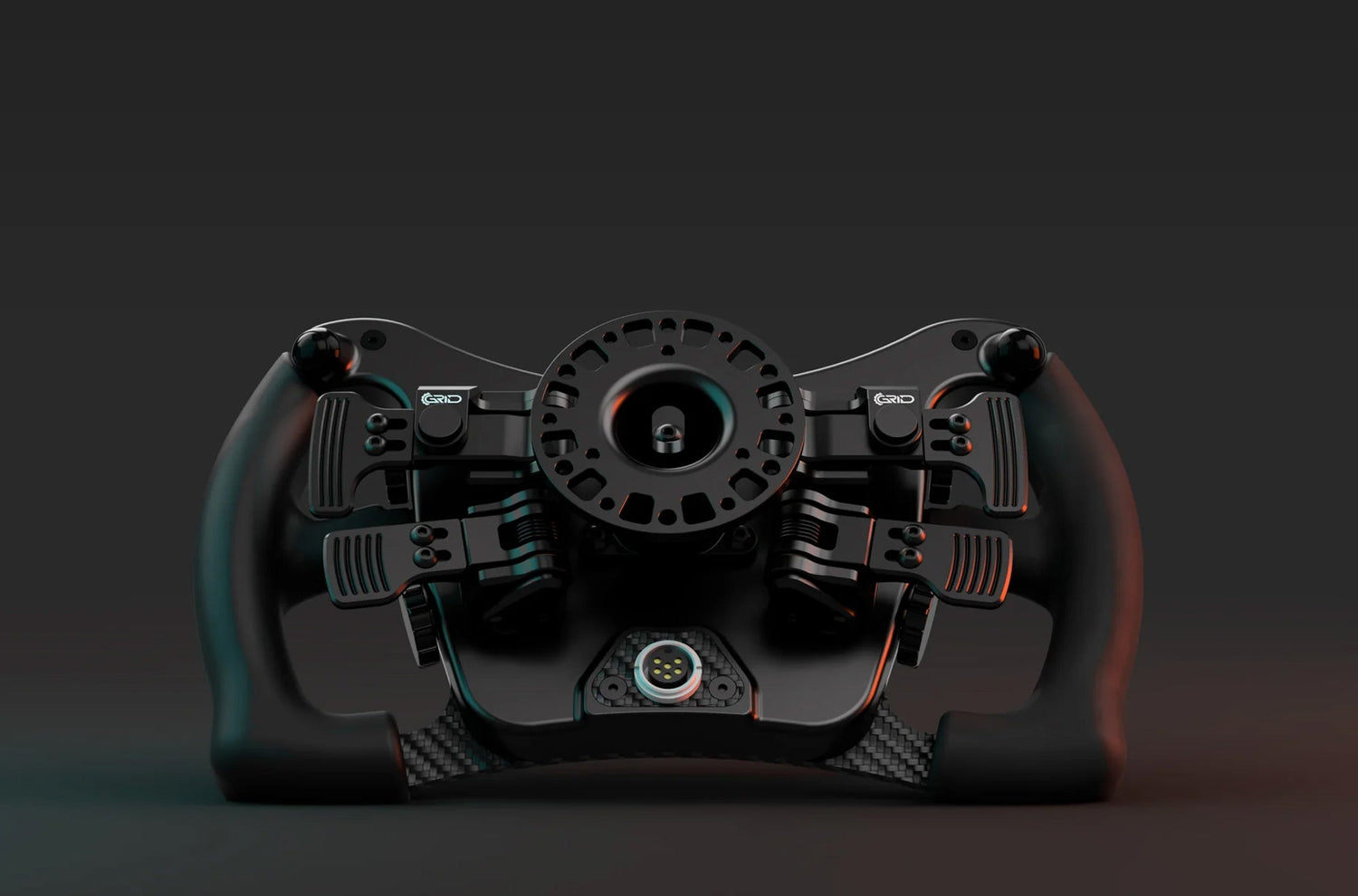

✔ Connector: 6 pin Lumberg connector

✔ Mounting: 6 x 70mm hub spacer included - 50mm length

✔ Software: Race Director

✔ Stickers/Decals: Custom sticker pack included for buttons, front encoders, and side encoders

✔ Weight: 1700 grams

✔ Compatibility: All PC wheelbases via USB

✔ Width: 295mm
